KTH – Telescopic Adjustable Crane Arm

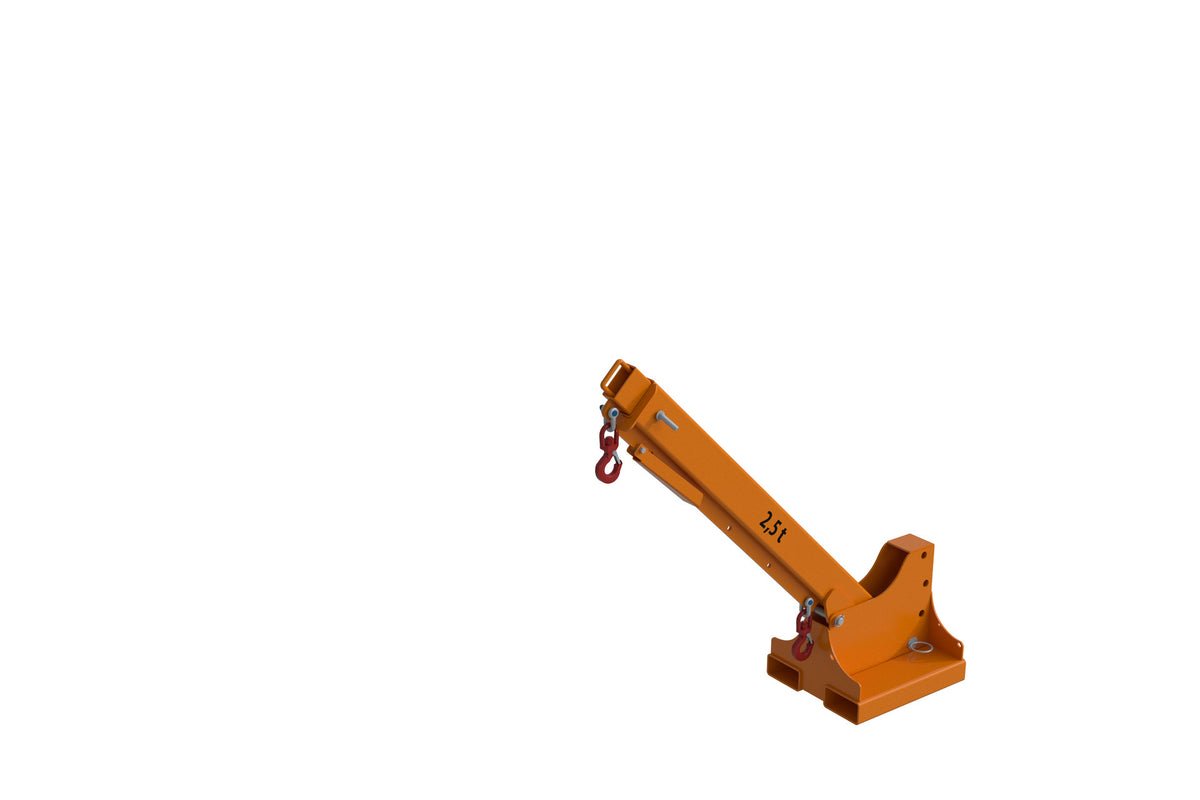

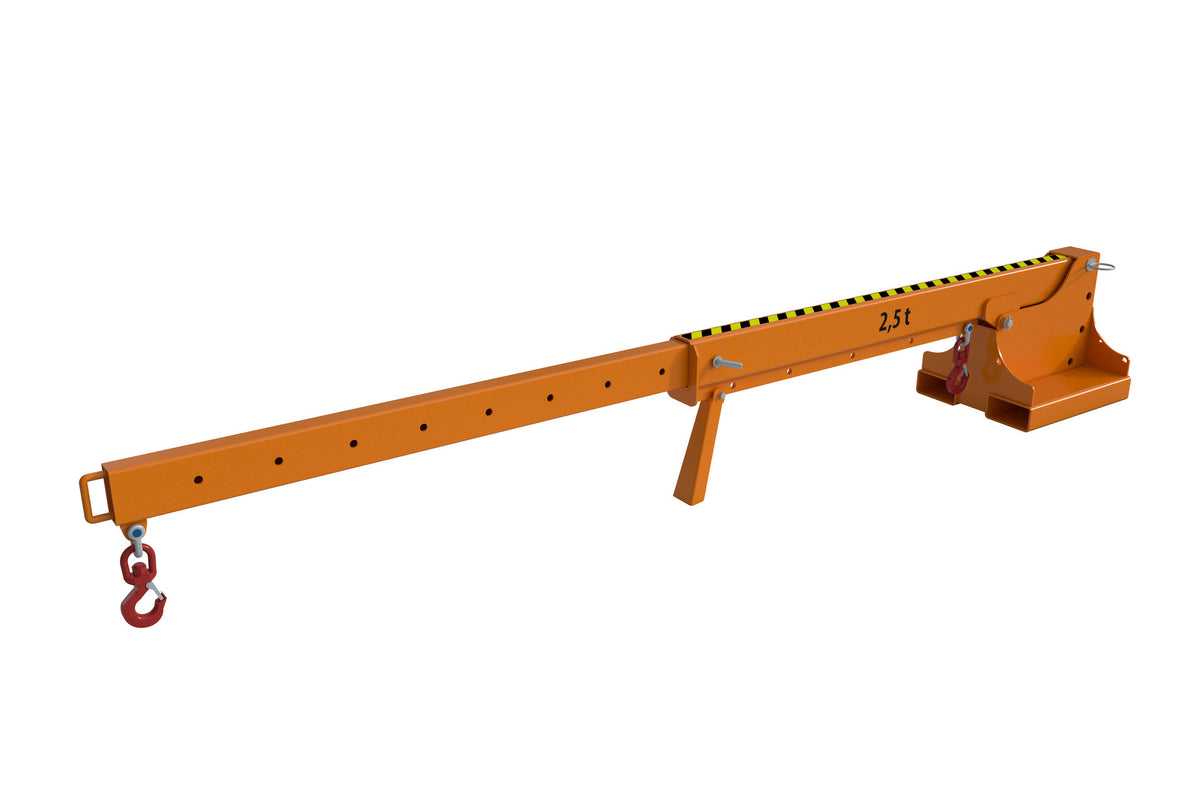

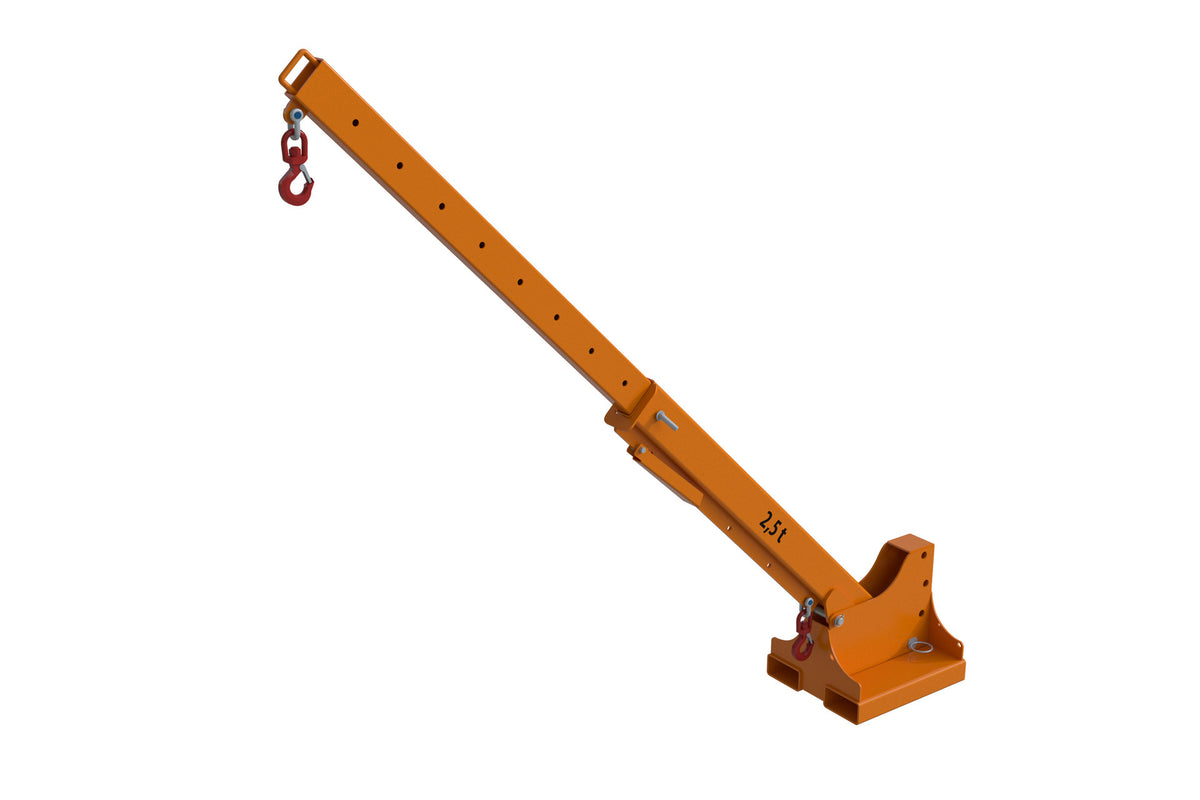

The KTH Telescopic Crane Arm is a versatile forklift attachment with adjustable length and angle, allowing the forklift to be used for a wide range of lifting applications. The arm can be adjusted to 8 different lengths and fixed in four different angles – 0°, 15°, 30° and 45°. This makes it particularly suitable for lifting over obstacles or in confined spaces.

The crane arm is manufactured from heavy-duty steel sections with reinforced welds for high strength and durability. The lockable fork sleeves ensure secure attachment to the forklift during lifting operations.

The KTH provides 14 possible hook positions for flexible positioning of the lifting point and is equipped with two lifting hooks:
– a welded hook at the front of the arm,
– a movable hook that can be positioned in five positions along the fixed section of the arm.

With its combination of adjustable length and angle, the KTH is a versatile solution for a wide range of lifting applications.
